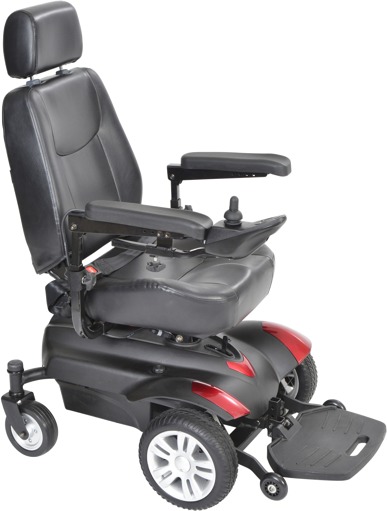

Titan X16 Front Wheel Power Wheelchair

This product is no longer available.
Manufacturer: Drive Medical
Category: Power Scooters
Product Code: titan2020x16
SKU: WEB-01443
UPC: 0822383542010
This item is not currently available to order.
Free Shipping

Description:

The front wheel drive Titan X16 power wheelchair is a comfortable and stylish option for users seeking a transportable power mobility product that's ideal for indoor and outdoor use. The Titan's front-wheel system positions the drive wheel forward of the user's center of gravity, making the chair extremely stable and giving it great performance over small obstacles. The Titan is also great indoors, navigating tight, enclosed spaces with ease. The Titan is also perfect for users on the go, as the chair can be disassembled, without tools, into components that can be loaded into a car, truck or van for transport without the need for a cumbersome vehicle rack. Choose either the compact captain's seat with cutout or the full-size captain's seat, available in multiple seat widths. You can also customize your Titan with the included two sets of interchangeable color panels.

Features and Benefits
  • Optional elevating legrests (requires Items # AE2500 and Item # LK3JELR) sold separately
  • Front wheel drive for excellent maneuverability and obstacle handling
  • Interchangeable color panels in red and blue
  • Seats are height adjustable, swivel and feature a fold-down backrest
  • Adjustable length controller mount
  • Armrests are padded, adjustable and removable
  • Optional swing-away controller arm (Item #AA4100) sold separately
  • Flip-up footplate with height, depth, and angle adjustments
  • Positioning belt included
  • Programmable controller
  • Flat-free, non-marking black tires
  • Easy free-wheel operation
  • Front anti-tip wheels

  • Product Specifications
  • Actual Product Weight: 163 lbs
  • Anti Tip Wheels: Yes
  • Batteries: 2 - 12V 35AH
  • Battery Weight: 44 lbs
  • Brakes: Electromagnetic
  • Casters: 6"
  • Charger: Offboard, 3A
  • Climbing Angle: 6 degrees
  • Controller: Dynamic Shark 40A
  • Drive Wheels: 10" x 3" Flat Free
  • Ground Clearance: 2.5"
  • Heaviest Piece: 68 lbs
  • Max Speed: 4 mph
  • Maximum Range: 15 miles
  • Motor: 2 - 24V x 200W x 3900rpm
  • Number of Wheels: 4
  • Overall Product Height: 44"
  • Overall Product Length: 40"
  • Overall Product Width: 25"
  • Primary Product Color: Red, Blue
  • Primary Product Material: Steel
  • Product Weight Capacity: 300 lbs
  • Seat Depth: 16", 18", 20"
  • Seat Weight: 43 lbs
  • Seat Width: 16", 18", 20", 22"
  • Seat to Floor Height: 20.5"-23"
  • Seat to Foot Deck: 16"-18.5"
  • Steering Type: Joystick
  • Turning Radius: 25"
  • Wheelchair Weight Without Battery: 119 lbs
  • Product Weight Capacity: 300 lbs
  • Warranty: Limited Lifetime on Frame; 14 Month Limited on Electronics, Controller and Drive Train components; 6 Month Limited on Battery

  • Model # titan1616x16, titan1618x16, titan1816x16, titan18csx16, titan2020x16, titan20csx16, titan22csx16, titanlb18csx16
